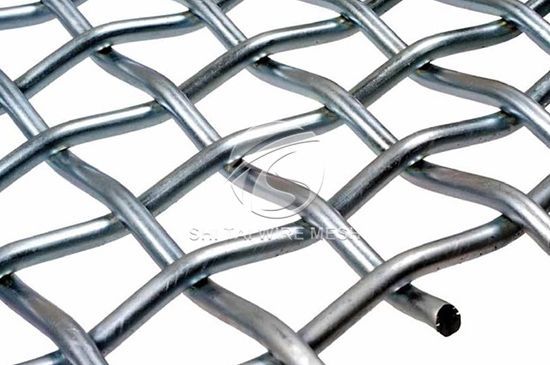

Woven Wire Screen

Introduction

The Woven Wire Screen is woven with metal wire .It can remove and recover suspended solids of different types and sizes. It has the advantages of simplicity, efficiency, and low operating costs.The application fields of woven wire screen are spread throughout industry, agriculture, technology, and national defense.It develops synchronously with the national economy and is closely related to the national economy and people's livelihood.

Inquire Now

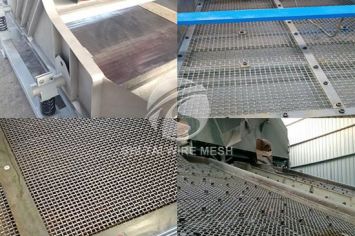

Product Show

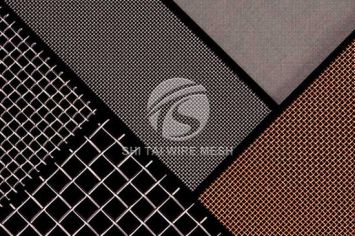

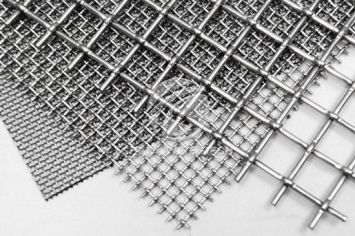

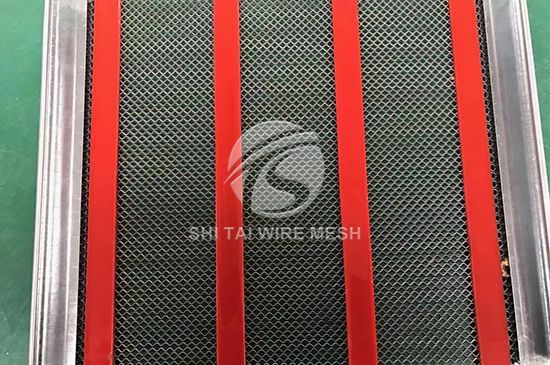

Various woven wire screen:

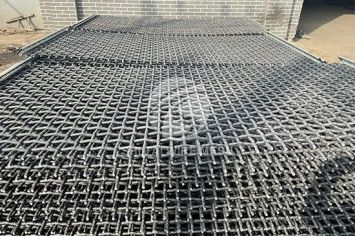

Woven Wire Screen

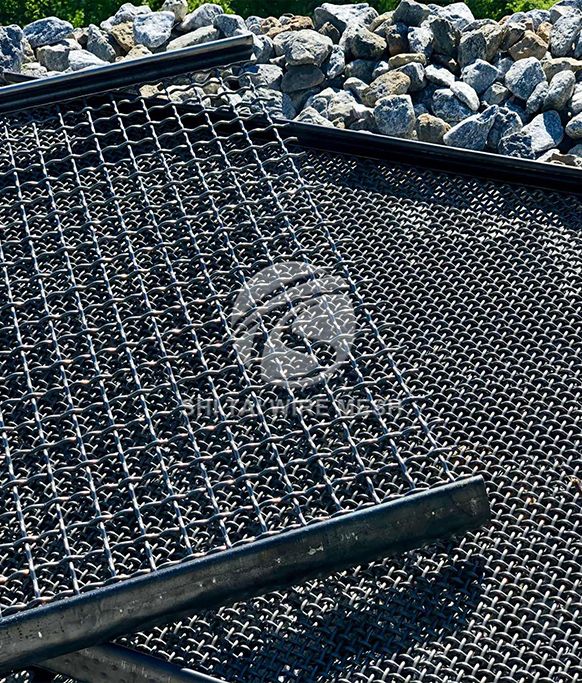

Dual Lock Extra Tense Woven Wire Screens

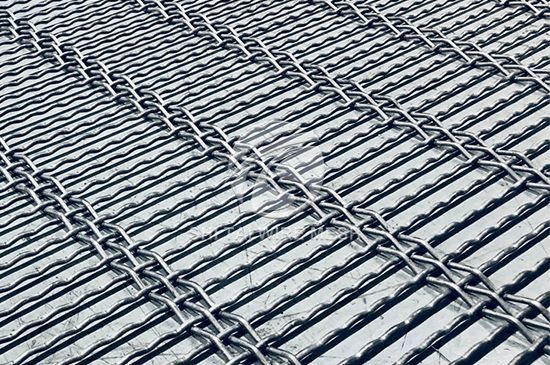

Square Flat Top Locked Woven Wire Screens

Product Specifications

The above are our standard size and specification, in addition we also support site design and customized size, just simply provide the length of your site on all four sides of the length of the straight line length and height, contact us to quickly customize and view the effect drawings!

Vibrating Screen Mesh	Size	Wire Diameter	Aperture	Material	Type of Edge
	1219.21892.3mm 10002000mm	1.6-12.0mm	3.0-70.0mm	45MN 65MN stainless steel	cut edge plain hooks hook with matel
	All specifications are customizable

Size	Thickness	Aperture	Material	Aperture Type	Color
305*305mm	30mm 45mm 50mm 60mm	0.075-120mm	polyurethane	round square hexagonal rectangular	yellow red blue
All specifications are customizable

Need a custom solution?

Can't find what you were looking for?

We can customize the product for you, determine the wire diameter, aperture, length and width, color, welcome to contact

Connection Mode

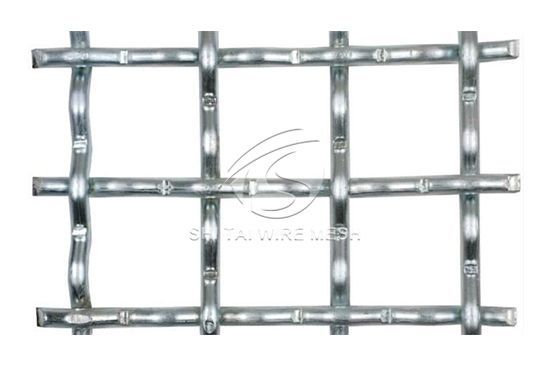

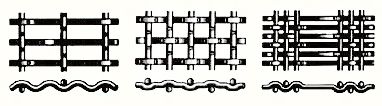

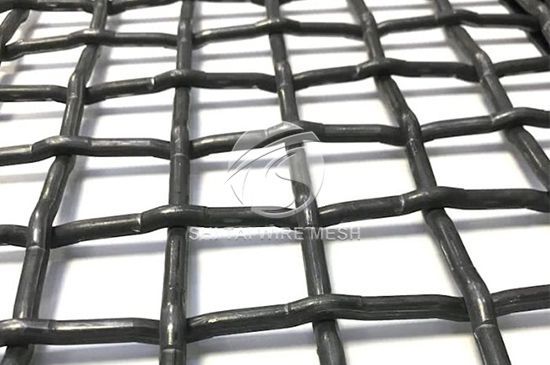

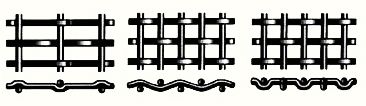

Common structures:

Woven Wire Screen

Double Lock Crimp Single Crimp/Double Weave Flat Top

Woven Wire Screen

Intermediate Crimped Lock Crimp/Press Lock Lock Slot/Triple Shoot

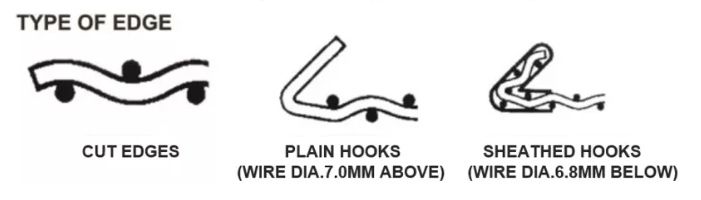

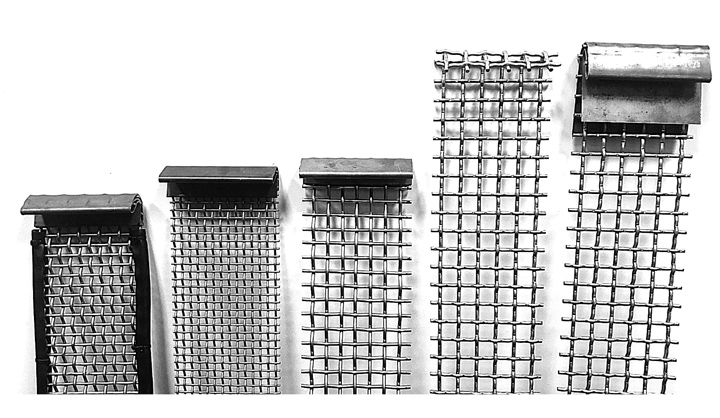

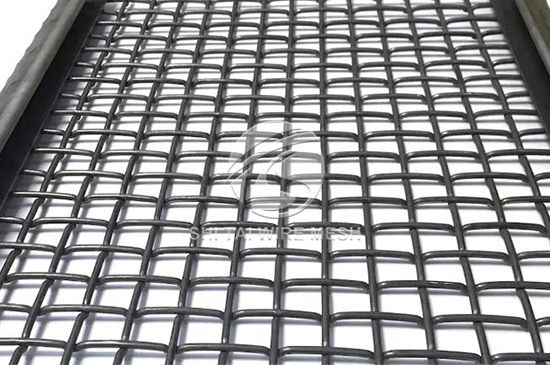

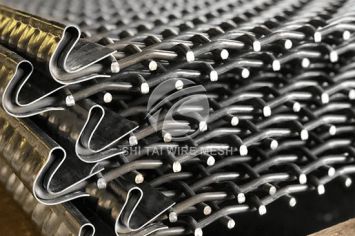

The Vibrating screen mesh can be produced with edges and hook types as below:

Woven Wire Screen

Edge Preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.

Hook Type: C or U hook for 30°-180°.

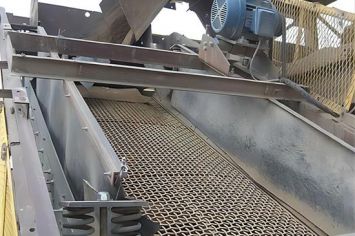

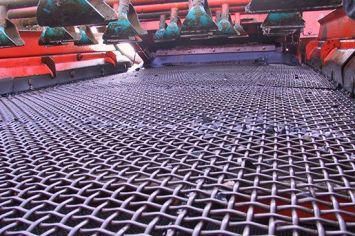

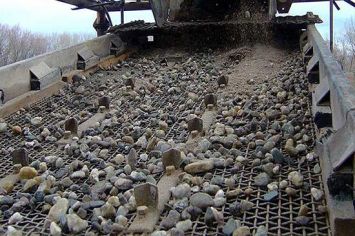

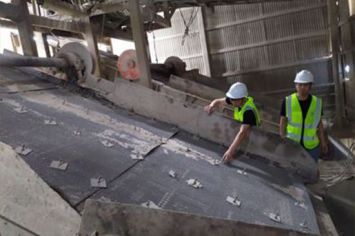

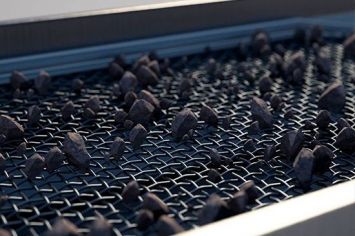

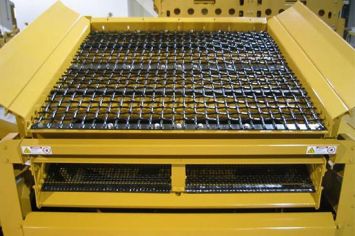

Applications

Mining Industry
Iron Ore industry
Coal Industry
Crusher
Aviation
Chemical Industry

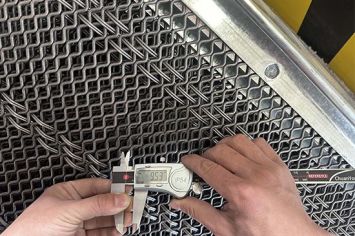

Quality Control

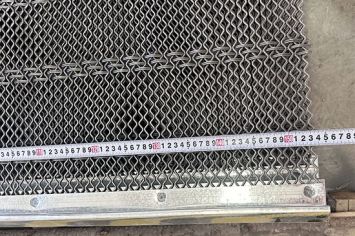

Screen Size Test

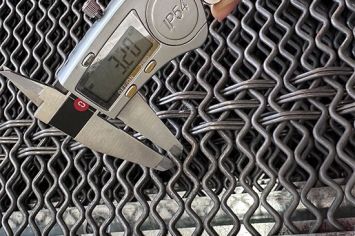

Screen Wire Test
Screen Hole Size Test

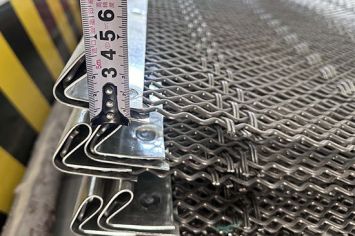

Screen Hook Test

Advantages

High Quality Screening
Woven wire vibrating screen mesh is the most common type of screening media. The diversity of applications and low cost has made it a very popular choice on the market. A lot of construction industries use steel wire screen mesh.
Diversity of Applications
Woven wire screens are a perfect match for Aggregate Processing, Washing Applications, Cement Manufacturing, Asphalt Plants and Mining Applications.
High Grade High-Carbon Steel
Not all wires are made the same. To ensure the highest quality and compliance we use only DIN 17223 Grade A steel in our woven wire screen panel manufacturing. For stainless steel products we adhere to AISI 304 316 309 standards. Other standards can be used for specific individual applications.
Variable Shapes and Sizes
We manufacture and supply woven wire screen panels with different sizes, shapes, patterns and apertures.

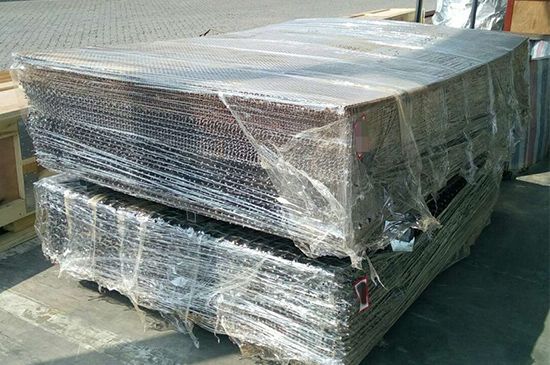

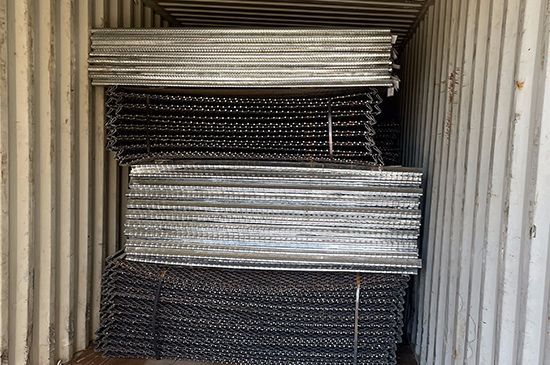

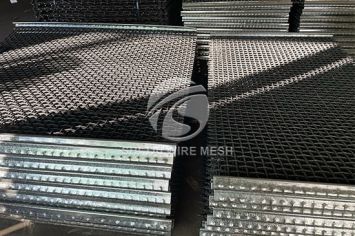

Package & Loading

We can package the woven wire screens according to the customer's requirements:

Packed steel strip This type is suitable for full container purchases.

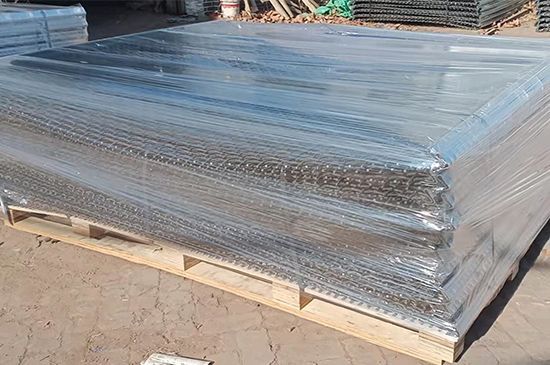

Packed steel strip + Plastic film + Wooden pallet

Packed steel strip + Plastic film + Metal pallet

We can also customize the logo on the packaging according to customer needs.

Shipping Ways:

Land transportation, sea transportation, air transportation, express delivery.

We will recommend the most favorable transportation method for you based on customer needs and the size of the goods.

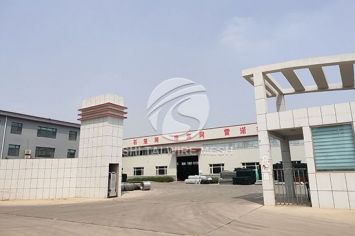

Our Company

Hebei Shitai Environmental Engineering Co., Ltd.,is a professional Welded Gabion Box supplier in China. We are professionally engaged in the production and export of all kinds of Gabion for defense.

Our company has owned all kinds of weaving and welding machines of over 160 sets and more than 100 staff members ensure high production efficiency and low production loss.

More than 20 research and development department workers have been developing more products suitable for customers’ requirements and market trends.

Customer Feedback

FAQ

How to install the products?

When you first purchase a product but don't know how to use the installation, we will provide text or video installation instructions. Don't worry, we not only provide you with the required products, but also provide after-sales service. Anyway, please feel free to contact us if you have any questions!
Can we get sample before the formal order?

Yes, For regular products, we can provide free small size samples, and clients only need to pay for shipping. For non-standard products, sample opening fees need to be paid. The sample fee will be deducted from the official order.
How can factory assist me in starting a business?

We can help you with inquiry, product details,provide samples, transportation,and other aspects. We have spent six months helping Australian client start his new fence business. If you are interested in a certain product but cannot purchase it due to budget or other reasons, do not give up asking for a quote again and do not forget our factory. Within two years, we received multiple inquiries from the same client about the same product, and the following year, he finally had enough money to order a 40 foot container quantity fence. You have a need, and we have always been there.
How to get the best product with a limited budget?

You only need to tell us where the product you need is to be used and what is the total length. We will provide a quotation based on your requirements. If your budget is limited, we have many products for the same purpose, and there is always one product that meets your requirements in terms of price and quality. About transportation Shipping terms: shipping by sea. Payment terms: 30% of the total almost is to be paid by T/T as deposit and the balance is to be paid by T/T before the goods leave the factory. Loading Port: Tianjin Xingang Port, China. Samples we can supply samples for free if small quality. clients need to pay for the shipping charge.
What are the effects of what materials are used for surface treatment?

Powder: we always use the famous international powder (AkzoNobel) sprayed, the powder coated fence will be very smooth, with great corrosion resistance, outdoor use year can reach 15-20 years. Galvanized: All hot-dipped galvanized, the fence will 15-20 years not rust.
Can You Supply customization service according to our requirements?

Yes. Our customization service is including several items: special sizes and accessories, painted logos, customized colors and signboards. Just tell us your requirements, we will try our best to satisfy you.
What's the lifespan of your Security Fence?

It depends. We have several different materials and surface treatment for our steel security fencing, they all have different lifespan. You can tell us your using environments and requirements, we will recommend the best products for your projects.
Can your product be used near sea or coastal area?

Yes, we have heavy galvanized or galfan galvanized wire material to make sure the products no rust in these conditions. We can also add powder coating surface treatment to achieve the best anti-rusting results. We have pass lab salt spray test and many projects experience.
