Vibratory screening is an essential process in industries such as mining, aggregates, recycling, and more. At the heart of many high-efficiency screening machines is the woven wire mesh. In this article, we explore what woven wire mesh is, why it is critical for vibratory screens, the various types available, and how different sizes and customizations meet specific industrial needs.
Vibratory screens are machines that use rapid, controlled vibrations to separate particles by size. These screens feature multiple decks—each outfitted with a screening surface—that allow material to be stratified and efficiently classified. Whether screening fine particles in mineral processing or coarse aggregates in construction, vibratory screens depend on durable, precisely engineered wire mesh for optimal performance.
Woven wire mesh is a material formed by interlacing wires in a regular pattern to create uniform openings (or apertures). When used in vibratory screens, this mesh:
- Acts as a Filter: It separates particles based on size by allowing smaller particles to pass while retaining larger ones.
- Ensures Durability: Manufactured from high-quality metals such as stainless steel, high-carbon steel, or alloyed options, the mesh withstands heavy loads and constant vibrations.
- Enhances Efficiency: Its precise construction minimizes blinding (when particles clog the openings) and maximizes the open area, ensuring higher throughput and reliable separation.
Choosing the right type of woven wire mesh depends on the application, material characteristics, and required throughput. The most common types include:
- Definition: The standard “over-under” weave that forms square openings.
- Features: Easy to manufacture, cost-effective, and reliable for general screening applications.
- Applications: Ideal for applications requiring precise particle separation where standard apertures suffice.
- Definition: Also known as “tonnage capacity” screens, these have heavier and thicker wires.
- Features: Designed for high-load applications, ton-cap mesh offers enhanced durability and strength.
- Applications: Widely used in heavy-duty screening operations where coarse materials or large volumes are involved.
- Definition: A mesh pattern engineered to combat blinding by providing a larger open area.
- Features: Uses additional “shoot” wires along the openings to maintain more flexibility and continuous throughput.
- Applications: Best suited for processes where fine screening is necessary and clogging is a common issue.
Other variations may include modified weaves or custom fabrications that combine the benefits of standard patterns with additional reinforcements or self-cleaning features.
The dimensions and specifications of woven wire mesh vary depending on the vibratory screen's design and the targeted particle size:
- Vibratory screen sections are typically manufactured in sizes up to 12 feet in length and 5 feet in width.
- Standard increments (e.g., 5-foot sections) allow for easy maintenance and replacement—if a small portion is damaged, only that section may need to be replaced.
- The mesh count, defined as the number of openings per inch, directly affects the size of particles that pass through.
- For example, a higher mesh count (more openings per inch) results in finer screening, while a lower count is used for coarser materials.
- Wire diameters commonly range from 0.3 mm up to 16 mm, ensuring that the mesh can be tailored for both delicate applications and heavy-duty industrial work.
- Overlap & Backing Cloth: Additional layers or overlaps can improve the mesh's durability and help prevent clogging.

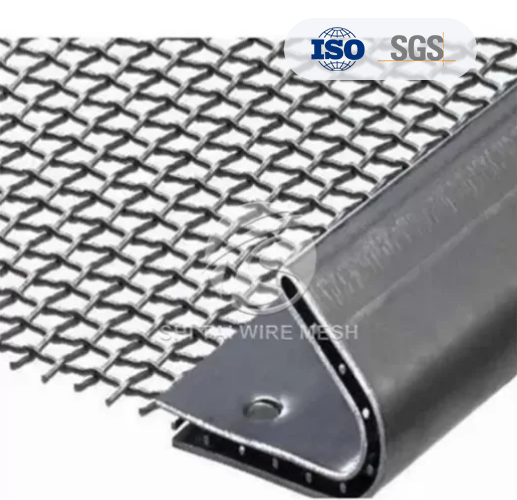

- Edge Treatments: Options such as rubber edging or reinforced hook systems ensure that the mesh remains securely mounted within the screen frame even under continuous vibratory stress.
Woven wire mesh is preferred in vibratory screening because it offers a balance between open area and strength. Key benefits include:
- High Throughput: The open area in the mesh provides ample passage for materials, which enhances the efficiency of the separation process.
- Durability: Constructed from robust materials, the mesh withstands the mechanical stresses of high-volume industrial applications.
- Versatility: Customizable weaves and sizes make woven wire mesh suitable for a wide range of industries—from mining and quarrying to chemical processing and recycling.
- Reduced Maintenance: High-quality mesh minimizes downtime due to clogging or wear, reducing overall operating costs.
- Mining & Aggregates: Sorting rocks, sand, gravel, and other minerals.
- Recycling: Separating and classifying materials like plastics, metals, and glass.
- Food & Beverage: Screening ingredients and ensuring product uniformity.
- Chemical Processing: Filtering and dewatering operations where precision separation is critical.
When selecting woven wire mesh for a vibratory screen, consider the following:
- Assess the abrasiveness, moisture content, and hardness of the material being screened.
- Choose a metal grade (stainless steel, high-carbon steel, etc.) that meets the environmental and mechanical demands of your application.
- Determine the optimal mesh count and aperture size to achieve the desired separation.
- Consider additional features like anti-blinding weaves or self-cleaning mechanisms if the screened material tends to clog the openings.
- Ensure that the screen sections fit the dimensions of your vibratory screen machine.
- Custom sizing may be necessary for non-standard equipment or specialized applications.
- Look for products that offer ease of installation (e.g., reliable hook systems, reinforced edges).
- Durability features can significantly reduce maintenance time and cost.
Woven wire mesh for vibratory screens plays a critical role in ensuring efficient, high-quality material separation across many industrial sectors. Understanding the different types—from square mesh to ton-cap and ty-rod—and the various sizes available allows operators to select the optimal solution for their specific needs. By balancing open area, durability, and precise screening capabilities, woven wire mesh helps improve throughput and reduce downtime, making it an indispensable component of modern vibratory screening systems.
If you're planning to upgrade your screening equipment or need expert advice on the best woven wire mesh for your vibratory screen, consider consulting with a reputable manufacturer. With the right mesh, you can enhance your process efficiency, reduce maintenance costs, and achieve superior screening performance.
