Welded gabions are versatile structures commonly used for erosion control, landscaping, and retaining walls. These wire mesh containers, filled with stones or other materials, are known for their durability, flexibility, and ease of installation. This article outlines the step-by-step process of installing welded gabions, ensuring a robust and effective structure.
The first step in installing welded gabions is thorough site preparation. This involves clearing the area of any debris, vegetation, or obstacles that might interfere with the installation. It is crucial to have a level and stable base to ensure the gabions remain secure and effective over time.
Mark the boundaries of the area where the gabions will be placed, using stakes and string lines to outline the exact position. This helps in maintaining alignment and ensuring a straight installation. Excavating a shallow trench to a depth of about 4 to 6 inches along the marked lines provides a stable foundation for the gabions.

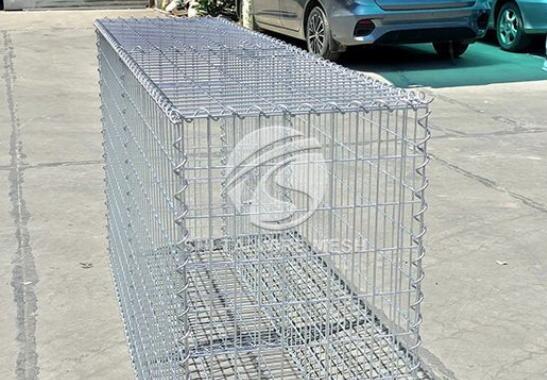

Once the site is prepared, the next step is to assemble the gabion baskets. Most welded gabion kits come with panels that need to be connected to form a box-like structure. Using the provided spiral binders or C-rings, attach the side panels, end panels, and base panel together. Ensure that all the corners are securely fastened to maintain the structural integrity of the basket.
For taller structures, internal support braces are often required to prevent bulging when the gabion is filled. These braces should be installed as per the manufacturer’s instructions, typically at intervals of 1 foot.
After assembling the gabion baskets, position them in the prepared trench. Ensure that the baskets are aligned correctly and are level. This step is crucial for maintaining the overall stability of the structure. For long walls, it is essential to place the baskets end-to-end, ensuring a tight fit between them.
If multiple layers of gabions are required, start with the bottom layer and stack additional layers on top. Each layer should be securely fastened to the one below using spiral binders or C-rings to prevent shifting.
Filling the gabion baskets is a critical step that significantly impacts the stability and appearance of the finished structure. Use durable, weather-resistant stones or other approved materials to fill the baskets. It is important to use stones of varying sizes to ensure a tight fit and minimize voids.
Place the stones by hand, particularly around the edges and corners, to ensure a neat and compact fill. Mechanical filling can be used for the central parts of the gabion, but care must be taken to avoid damaging the wire mesh. Ensure that the stones are evenly distributed and that the basket is filled to the top.
Once the gabion baskets are filled, secure the top panel to enclose the stones. Use spiral binders or C-rings to fasten the top panel securely to the side panels. Check all connections to ensure they are tight and secure.
For added stability, especially in taller structures, anchor the gabions to the ground or to each other using steel rods or stakes. This prevents any movement or shifting over time.
Installing welded gabions is a straightforward process that involves careful site preparation, assembly, positioning, filling, and securing. By following these steps meticulously, you can create a durable and attractive structure for various applications, from erosion control to landscaping.
If you are considering using welded gabions for your project, it is essential to choose a reliable supplier and adhere to the manufacturer’s guidelines. For more information or assistance, feel free to contact us. Proper installation ensures the longevity and effectiveness of your gabion structures, providing a practical and aesthetic solution for your needs.
