2x1x1 Gabion Box
ANPING SHITAI WIRE MESH PRODUCE CO.,LTD.

PVC PE Gray Green Color Hexagonal Gabion Boxes

Introduction

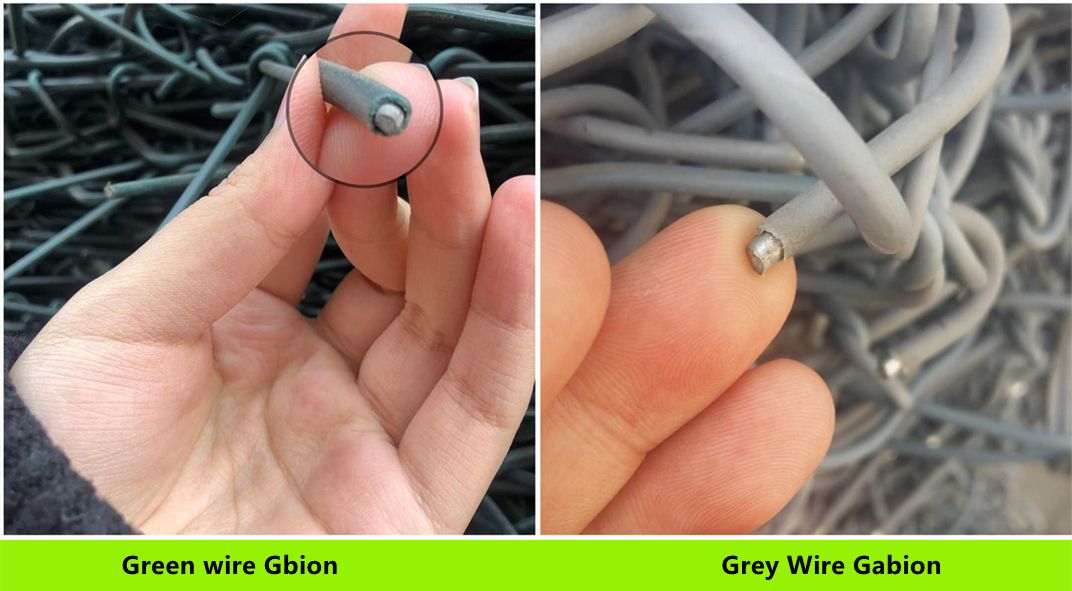

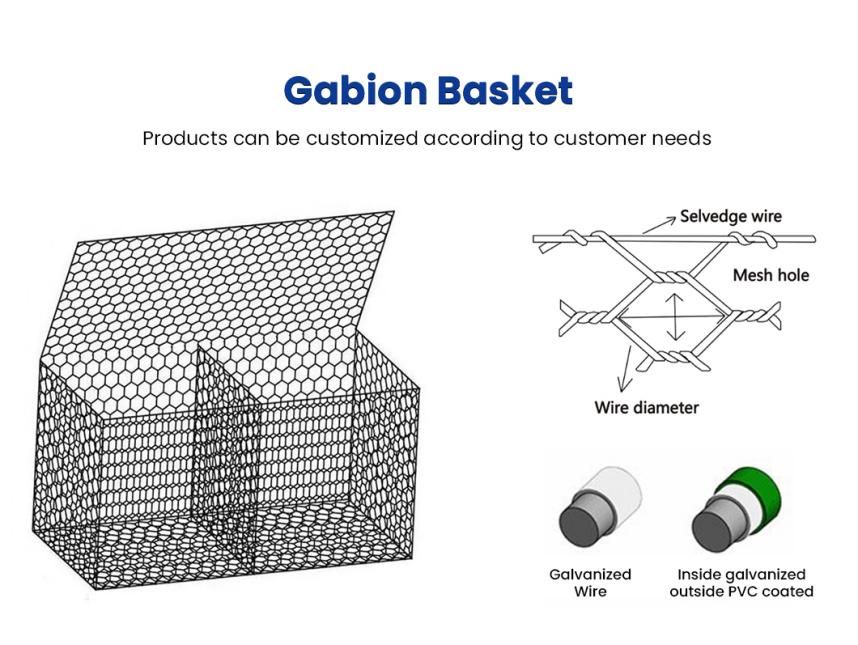

PVC gabion mesh wrapped with plastic galvanized steel wire, also known as PVC steel wire, is wrapped with a PVC protective layer on the surface of the steel wire, and then woven into various pore sizes of gabion mesh. This PVC protective layer will greatly increase its protection in high pollution environments, and through the selection of different colors, it can blend with the surrounding environment.

PVC

Gabion 2x1x1m PVC PE Gray Green Color Hexagonal Gabion Boxes Galvanized Woven Gabion Basket 6x2x0.3m Galfan Mattress Gabion Stone

Gabion 2x1x1m PVC PE Gray Green Color Hexagonal Gabion Boxes Galvanized Woven Gabion Basket 6x2x0.3m Galfan Mattress Gabion Stone


Color Can Be Customized

Specifications

Mesh Aperture(mm)Wire Diameter(mm)Wire Diameter(Pvc Coated)Inner/Outside(Mm)
60x802.0-2.82.0/3.0-2.5/3.5
80x1002.0-3.22.0/3.0-2.8/3.8
90x1102.0-3.22.0/3.0-2.8/3.8
100x1202.0-3.42.0/3.0-2.8/3.8
100x1502.0-3.42.0/3.0-2.8/3.8
120x1502.0-4.02.0/3.0-3.0/4.0

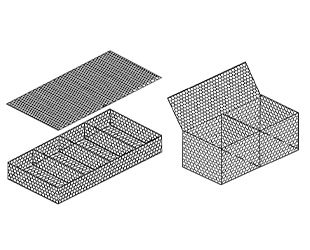

Gabion Basket /Reno Mattress Size

Length
(m)
Width
(m)
Height
(m)
DiaphragmVolume
(m3)
Tolerance
2.01.00.310.6      L:+/-3%W:+/-5%H:+/-5%
3.01.00.320.9
4.01.00.331.2
2.01.00.511.0
3.01.00.521.5
4.01.00.532.0
1.01.00.500.5
1.01.01.001.0
2.01.01.012.0
3.01.01.023.0
4.01.01.034.0
All Specifications Can Be Customized.
Need a custom solution?

Can't find what you were looking for?

We can customize the product for you, determine the wire diameter, aperture, length and width, color, welcome to contact

Contact US
Installation Instruction

Gabion 2x1x1m PVC PE Gray Green Color Hexagonal Gabion Boxes Galvanized Woven Gabion Basket 6x2x0.3m Galfan Mattress Gabion StoneGabion 2x1x1m PVC PE Gray Green Color Hexagonal Gabion Boxes Galvanized Woven Gabion Basket 6x2x0.3m Galfan Mattress Gabion Stone


Gabion 2x1x1m PVC PE Gray Green Color Hexagonal Gabion Boxes Galvanized Woven Gabion Basket 6x2x0.3m Galfan Mattress Gabion StoneGabion 2x1x1m PVC PE Gray Green Color Hexagonal Gabion Boxes Galvanized Woven Gabion Basket 6x2x0.3m Galfan Mattress Gabion StoneGabion 2x1x1m PVC PE Gray Green Color Hexagonal Gabion Boxes Galvanized Woven Gabion Basket 6x2x0.3m Galfan Mattress Gabion Stone

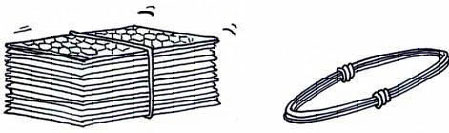

Step 1: Open the bundles and unfold the gabion box on the hard and flat surface.

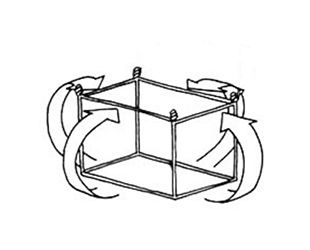

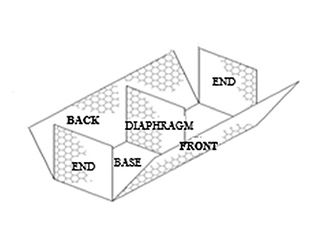

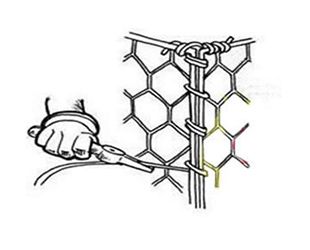

Step 2: Lift the side panels, end panels and the diaphragms of gabion box into vertical position.Step 3: Attach the side panel and the diaphragms together firmly with the lacing wire.
Gabion 2x1x1m PVC PE Gray Green Color Hexagonal Gabion Boxes Galvanized Woven Gabion Basket 6x2x0.3m Galfan Mattress Gabion StoneGabion 2x1x1m PVC PE Gray Green Color Hexagonal Gabion Boxes Galvanized Woven Gabion Basket 6x2x0.3m Galfan Mattress Gabion StoneGabion 2x1x1m PVC PE Gray Green Color Hexagonal Gabion Boxes Galvanized Woven Gabion Basket 6x2x0.3m Galfan Mattress Gabion Stone
Step 4: Filling the gabion box with stones, soils and other filling materials.

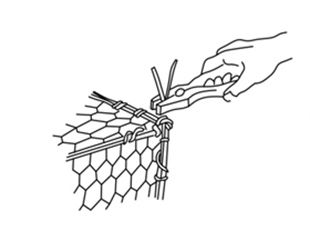

Step 5: Attach the lids onto the cages.Step 6: Cover the lids of gabion box and fasten the lid to the gabion box subject firmly and securely by lacing wire.
Certificates

Gabion 2x1x1m PVC PE Gray Green Color Hexagonal Gabion Boxes Galvanized Woven Gabion Basket 6x2x0.3m Galfan Mattress Gabion Stone


Company


Gabion 2x1x1m PVC PE Gray Green Color Hexagonal Gabion Boxes Galvanized Woven Gabion Basket 6x2x0.3m Galfan Mattress Gabion Stone


After-Sale Service

After the customer picks up the goods, our after-sales team provides installation and usage guidance, and continuously follows up on the installation and usage situation.


Gabion 2x1x1m PVC PE Gray Green Color Hexagonal Gabion Boxes Galvanized Woven Gabion Basket 6x2x0.3m Galfan Mattress Gabion Stone

  • How does your factory do regarding quality control?
    We have a special QC department in charge of products’ quality.
  • How about delivery time?
    Generally, it will take 7-10 days after receiving the payment. The specific delivery time depends on the items and the quantity of your order.
  • How do you make our business long-term and good relationship?
    1. We keep good quality and competitive price to ensure our customers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.
  • How do you view your relationship with customers?
    They are not only our customers, but also our partners, we will work together to develop, win-win cooperation.
