Canada Temporary fence with square frame and vertical or horizontal square pipe is a kind of welded portable fence.Connected by the flat feet, top clips and other accessories, it becomes a whole fence system for temporary fencing. Because of the various colors, high strength and durability, it has a long service life and it's safe for residences fencing and factories fencing.
Product Show

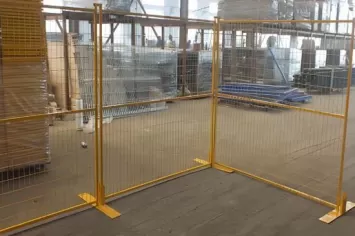

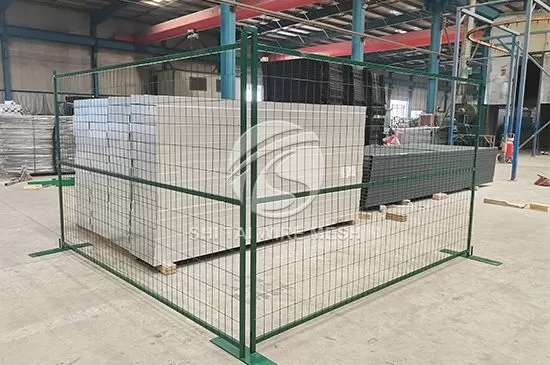

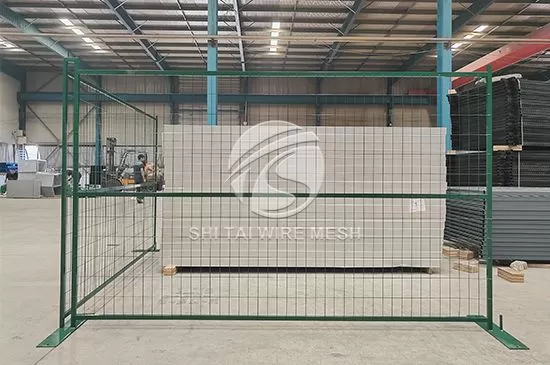

Canada portable fence is made up of square frame and vertical or horizontal square pipe. Connected by a top coupler, metal feet and other accessories, it becomes a whole fence system for temporary fencing. Because of the various colors, high strength and durability, it has a long service life and it's safe for residential fencing and factory fencing.

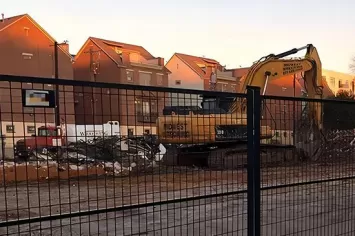

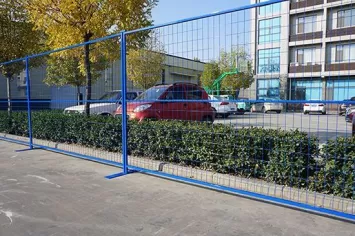

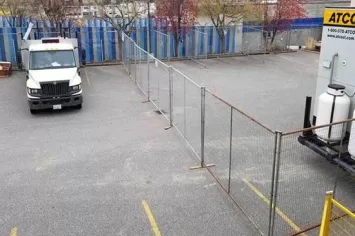

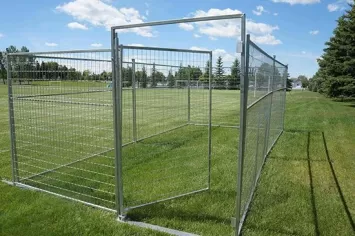

Canada temporary fence is often used to separate people at temporary events, road construction, construction sites, etc, therefore sometimes referred to as Temporary Construction Fencing. Shitai is a well-known fence supplier from China and we have more than 20 years of experience in production. We can provide high-quality products and perfect after-sales service.
◎ Smooth and elegant appearance. The surface is well-treated to eliminate all burrs for safe installation and removal.
◎ Full welding and hand welding technology. This technology provides a strong structure to extend its service life and prevent breakage.
◎ Lightweight and moveable with a detachable base. Its lightweight and detachable base makes it easy to handle and transport.

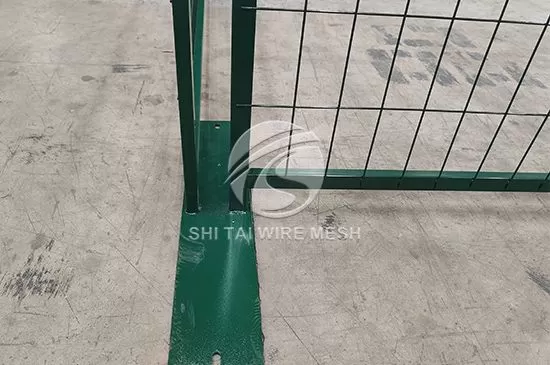

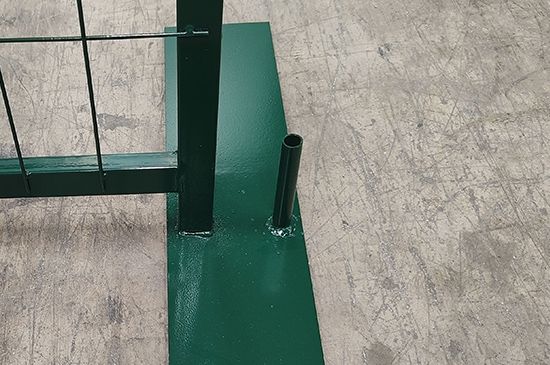

◎ Solid and stable base support. Platy fence feet are provided to make the temporary fence stand firmly on the ground.
◎ Easy installation and removal. All assembly and disassembly works can be done by one single person without digging holes, which saves both time and labor.
◎ Great cost effective. It can be installed and removed many times and for multiple uses.
◎ A wide range of colors. All colors are available to meet your specific needs.

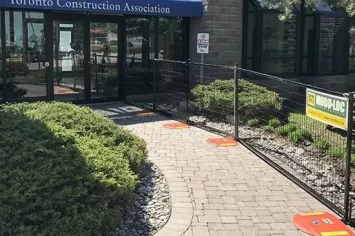

◎ Construction site security.
◎ Building and maintenance work.
◎ Public and scenic areas.
◎ Major public events, sports, concerts, festivals, gatherings.
◎ Emergency warning system.
◎ Any site needing security or privacy.
Canada Temporary Fence Specifications
The Temporary Fence Canada meets all industry standards. We are trained in all compliance requirements and can adapt to any critical adjustments.
Product Name | CANADA TEMPORARY FENCE | |||
Color | Green, Black, Gray, white, etc. | |||
Material | hot dipped galvanized steel, powder coated | |||
Wire thickness | 3-4mm | |||

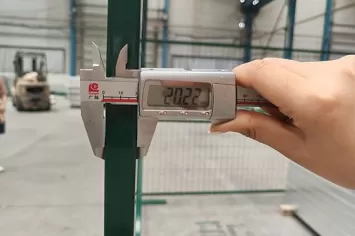

Frame sizes: | 25x25mm, 30 × 30mm, optional | |||
Fence sizes | 6′ (H)× 8′ (L) equal to 1.8 m × 2.4 m, 6′ (H)× 9.5′ (L) equal to 1.8 m × 2.9 m | |||

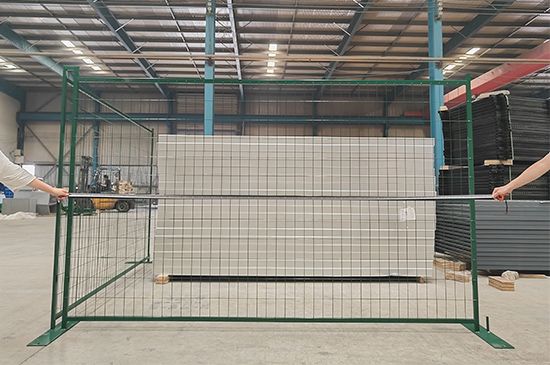

The fence panel
 | A kind of welded portable fence with square frame and vertical or horizontal square pipe |
| Fence panel | Overall size:1.8×3m |

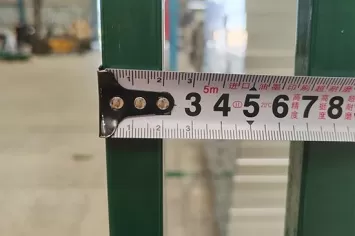

| Frame:25×25×1.2mm | |
| Middle rail:20×20×1.0mm | |

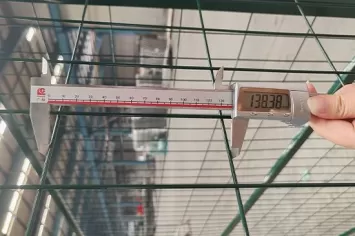

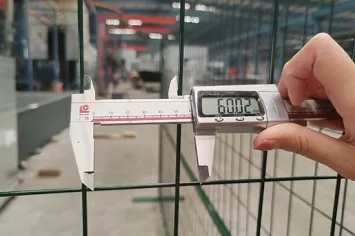

| Wire Gauge:3.5-4.0mm | |
| Aperture:50×100mm | |
| Material | High quality galvanized wires,galvanized pipes,Galfan,etc |
| Surface Finish | Galvanized +powder coated |
| Color | we could manufacture according to your needs. |

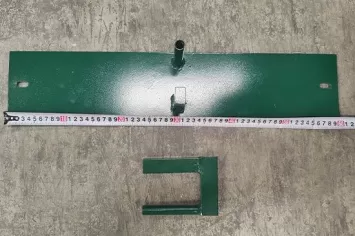

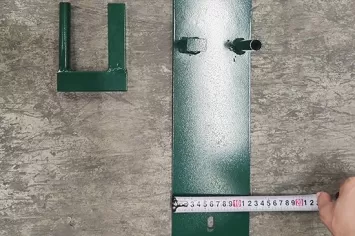

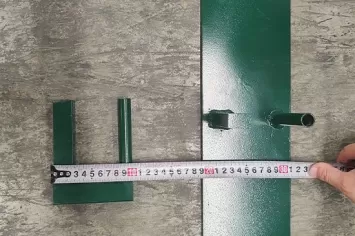

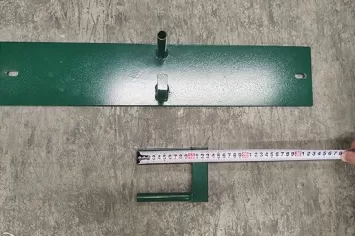

 | Galvanized plate with solid bars, vertical solid metal bar is one round and the other is square for better connection. |
| Size | 60*12cm, 75*10cm,86*9cm |
| Connector Pins Length | 10-15cm |
| Surface Finish | Galvanized, Powder coated |

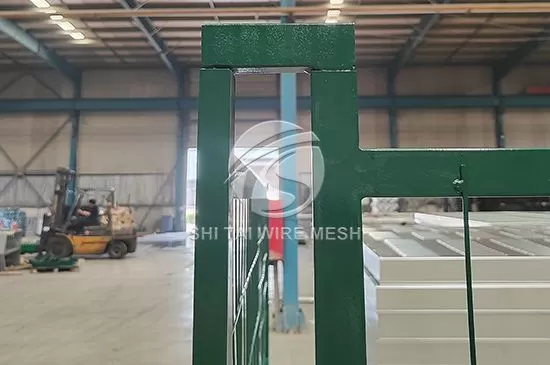

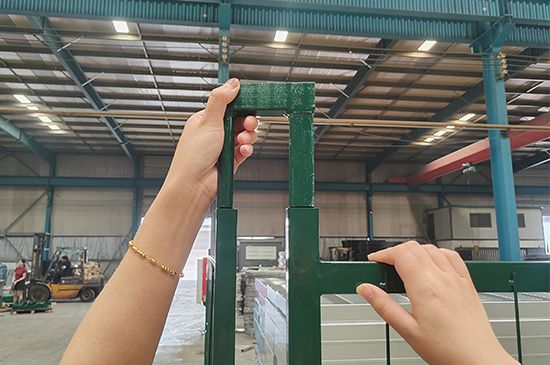

 | Galvanized top clips with horizontal metal tube and vertical metal tube.one is round and the other is square for better connection. |
| Size | 10*10cm |
| Surface Finish | Galvanized,Powder coated |
| Fence panel | Overall size:6'×10' |
| Frame:25×25mm | |
| Wire Gauge:3.5-4.0mm | |
| Aperture:50×150mm | |
| Material | low-carbon steel/tube |
| Surface Finish | galvanized coated, powder coated |
| Color | RAL color card |
| All specifications are customizable | |
As an experienced professional OEM & ODM Canada Temporary Fence Manufacturer, we always adhere to the most accurate welding and dimensional calibration, whether from the tubular frame, welded mesh, fencing base or top connector.
Can't find what you were looking for?
We can customize the product for you, determine the wire diameter, aperture, length and width, color, welcome to contact

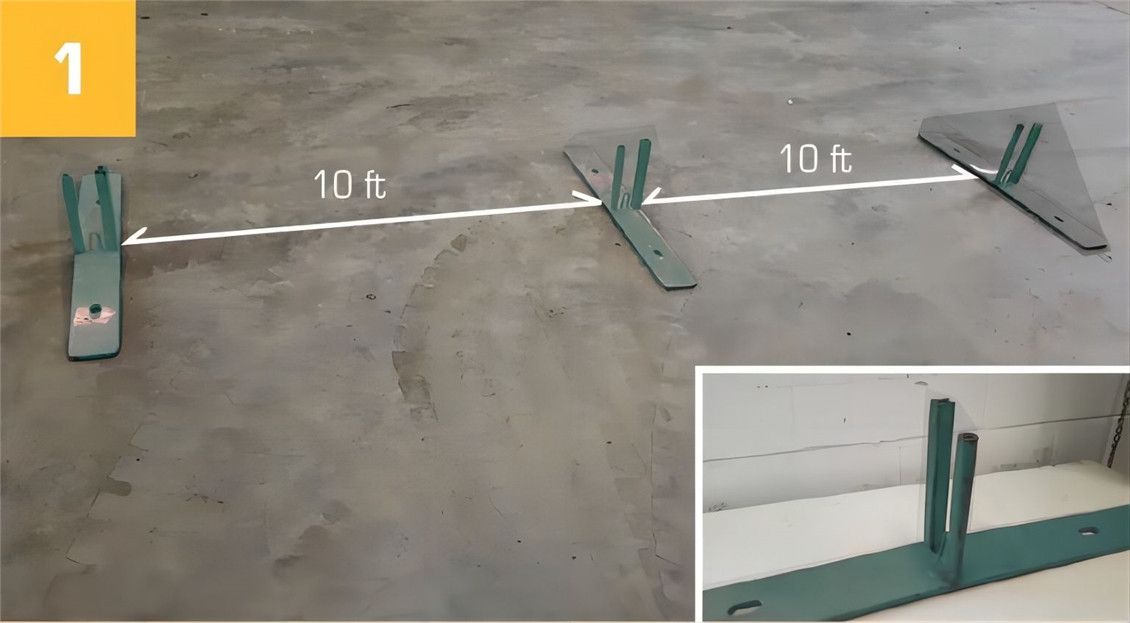

1. Lay out your fence bases approximately 10 feet apart with all of the round pegs facing the direction in which you will build your fence.

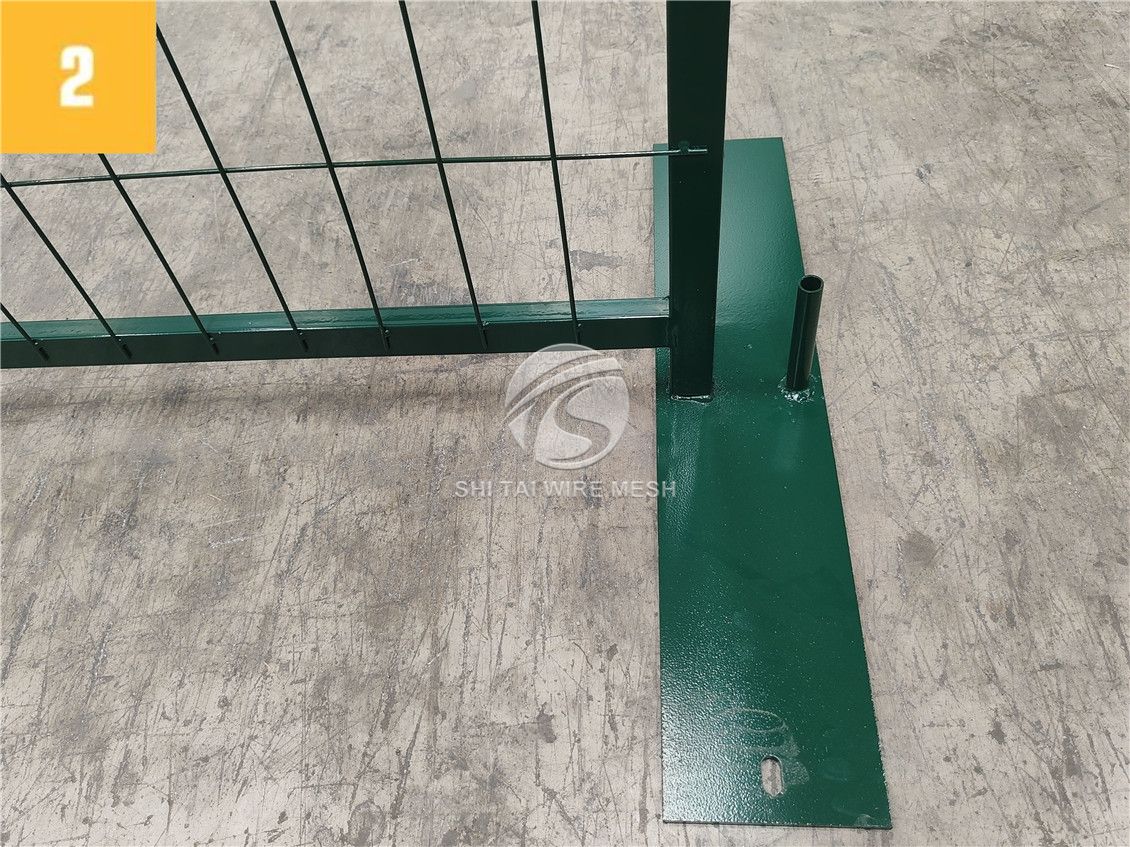

2. With a partner, begin assembling the fence panels onto the flat feet. Lift one end of the panel and insert the square solid bars into the post of the panel first, then drag the panel back to the previous flat feet and place it on the round solid bars.

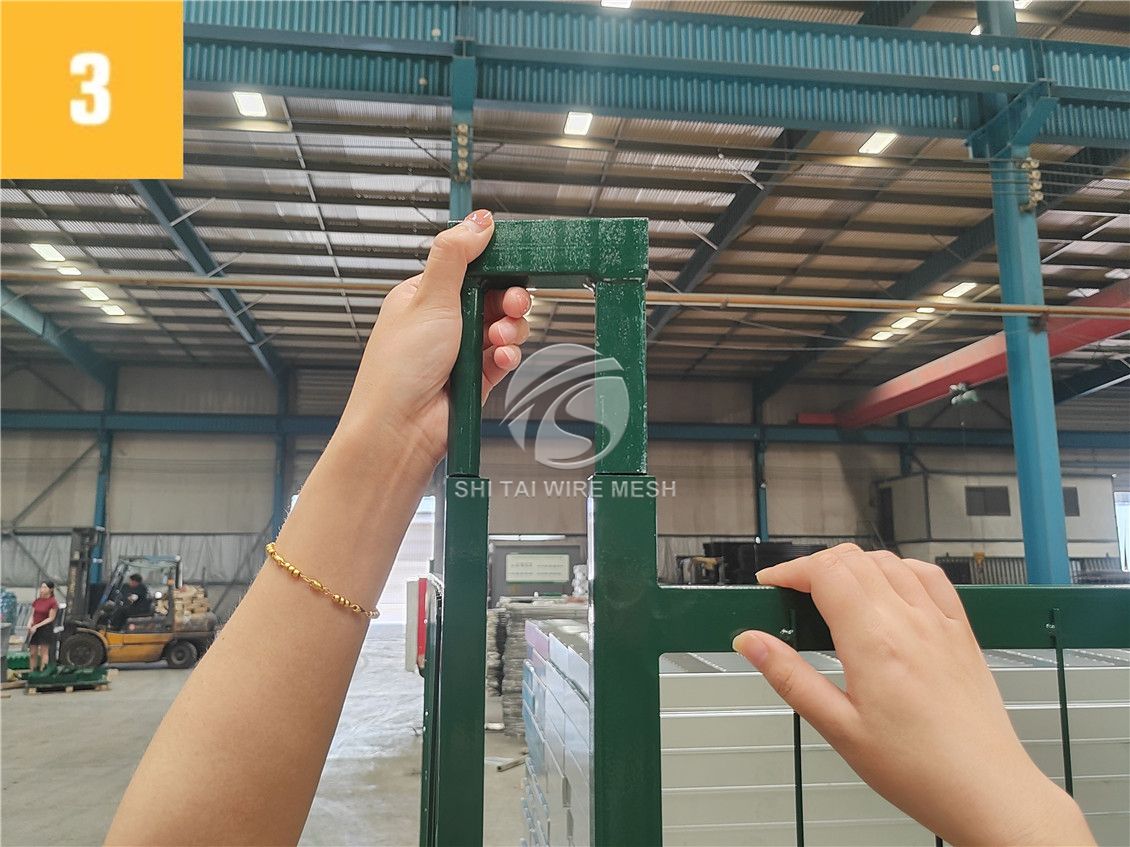

3. Round tube line up with round tube and square with square. Insert the clips into the top of the panel, and slide the clips in completely.
◎ One-man installation. With light-weight welded construction infill panel and fencing base are designed to installed in a plug-in type. It can be easily removed and mobile installed when necessary. This can be done by one person, at most two men.
◎ Quick access anywhere on site. No need to dig holes or laying foundations, removable and stable platy fencing feet can adapt cement or asphalt areas. The flexible isolation angle can rapid re-configuration of the construction area.
◎ Minimizes injuries by putting a higher security fence on sites. Quickly establish a fence for warning and cordoned off the hazardous area, or preventing unauthorized entry.
◎ Limits risks of theft and vandalism on job sites. It is anti-climb to prevent the thieves from entering and protect property from damage.
◎ Transparent worksite fence. Different from temporary hoarding, welded infill panels is visible without any sight blocks.
◎ Complete fencing system. Expect for fence panels, platy stable fencing feet, p shaped top coupler, foot screw (as needed) and shade clothes, other you wanted hardware can be supplied.

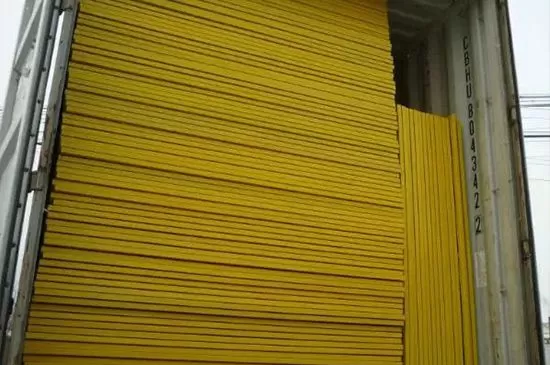

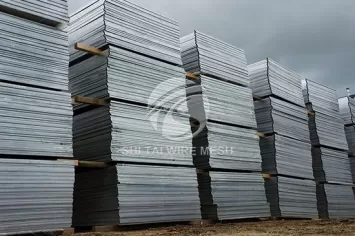

Method 1: In Bulk loading for Canada Temporary Fence
Without pallets, the panels will be loaded piece by piece into the container. It increases the capacity of the container and reduces the cost of fencing. However, unloading requires manual handling and is suitable for developing countries.

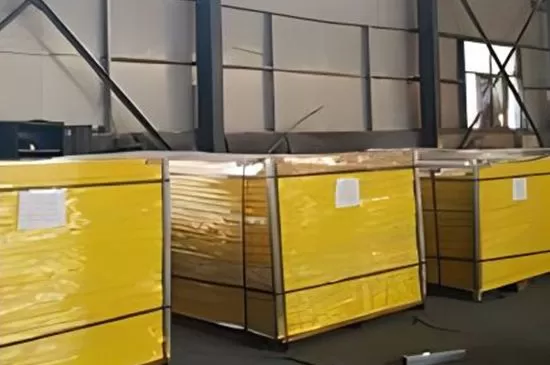

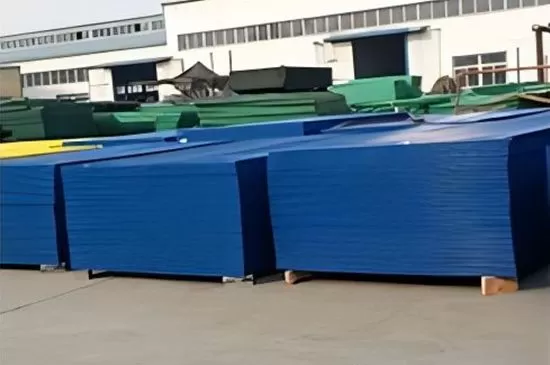

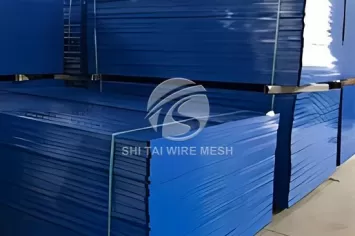

Method 2: Steel pallets for Canada Temporary Fence
Panels, feet and clips will be placed on steel pallets and wrapped in plastic wrap and cardboard panels to prevent any scratches on the surface of the fence. The edges of the entire pallet are protected with iron corner guards and finally secured with nylon tape. The rigorous and careful packaging ensures that the mesh will not be damaged during transport and handling.
Land transportation, sea transportation, air transportation, express delivery.
We will recommend the most favorable transportation method for you based on customer needs and the size of the goods.

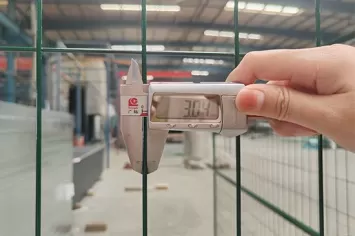

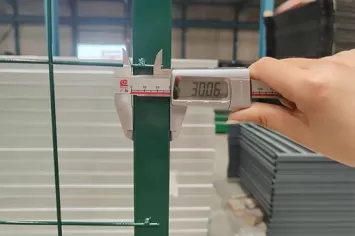

◎ 360° full welding by hand for the highest strength. We own welding technicians who all have more than ten years of experience. The infill mesh and square pipe frame are welded smoothly and sturdily at 360° to prevent cracks and corrosion.
◎ Various colors are available. We can provide a variety of colors with PVC-coated surface treatment. Such as red, yellow, blue, gray, black, green, etc.
◎ One-stop supply system. Expect fence panels, platy stable fencing feet, a p-shaped top coupler, foot screw (as needed) and shade clothes, other you wanted hardware can be supplied.
◎ Reliable and professional advice. As a company integrating production and sales, we’d like to give our customers friendly and reliable advice for picking the most suitable one for your desired application.
◎ Customized size for your needs. We have a standard-size temporary fencing inventory. Besides, we accept customized orders of special panel length and height along with the pipe thickness and diameter.
